AdBlue® dispenser for railway

Dispenser FD II for AdBlue® | railway

  • for new diesel trains with SCR technology
  • dry coupling for railway application
  • reliable design

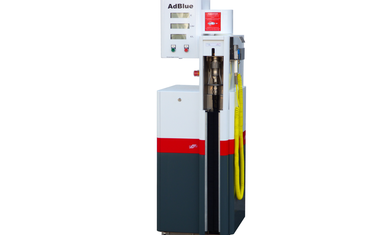

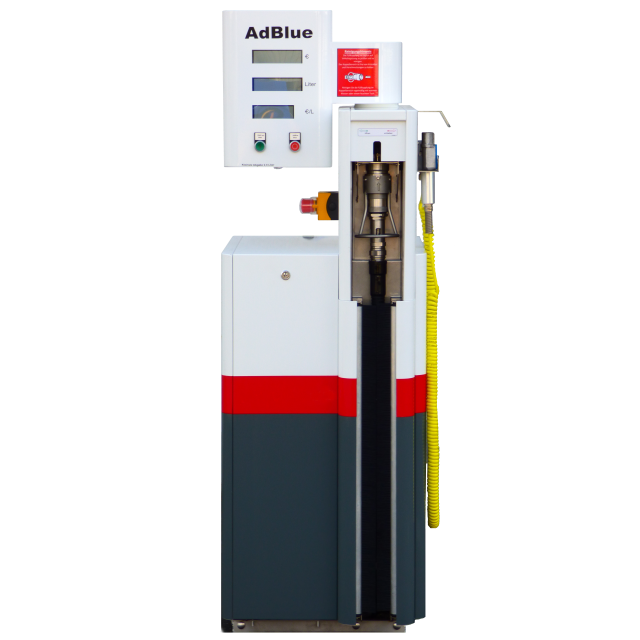

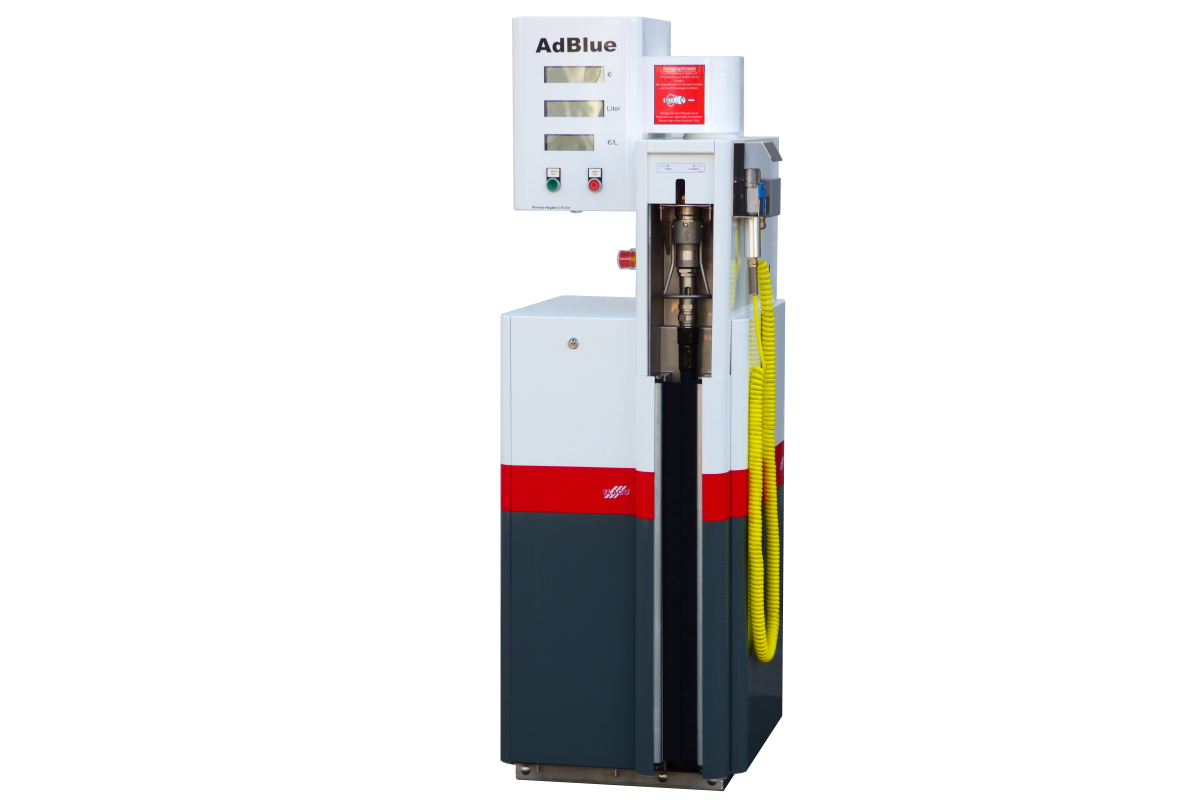

dispenser FD II for AdBlue® (railway)

The dispenser for the delivery of aqueous urea solution AUS 32 (AdBlue®) according to DIN 70070 for diesel-powered rail vehicles.

Options

The desing concept of dispenser FD II opens up a variety of application options:

    MID and non-MID systems (guaged/non-gauged)
    One-sided or two-sided delivery possible

Attractive design

The FD II series has modern design, stable construction and compact dimensions:

  • Base frame and base made of stainless steel
  • Insulated hangers and access doors made of sheet steel
  • Thermostat-controlled FLACOVENT heating system also for nozzle and hose
  • Brush cover for dispensing hose
  • Ambient temperature: -15 ° C to + 35 ° C
  • Dimensions: approx. 1,614 x 528 x 678 mm (H x W x D)
  • Colors: housing in traffic white (RAL 9016) Other RAL colors on request

Convincing technology

  • Oval wheel measuring unit with pulse generator
  • Overfill protection 24V with GWG connector module
  • Hose reel with 3 m tank hose
  • Dry clutch with handle
  • Emergency stop button

Case
Base and frame stainless steel. Insulated housing.
Dimensions
1614 x 528 x 678 mm (HxWxD)
Display
Volume, Price, Price per liter
Meter-Movement
oval gear meter with pulse generator
Nozzle
dry coupling. Truck nozzle also available as an option
Length hose
ca. 3 m
Overfill-Savety
NB220 QS (24V) with GWG- connector (DB Standard)
Environmental temperature
-15 bis +35 °C
